Grade 12General Physics

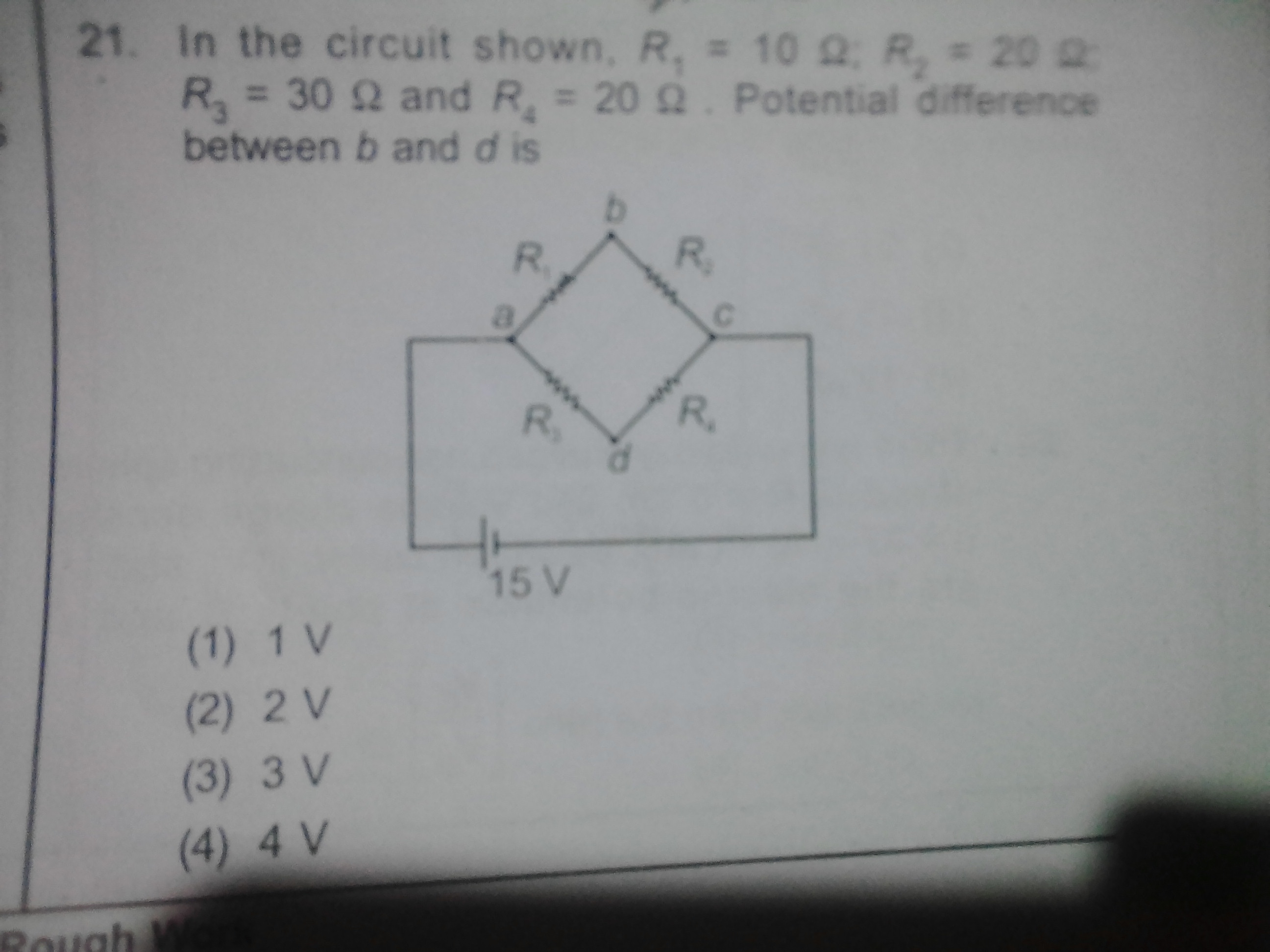

In the circuit shown, R1= 10 ohm; R2= 20 ohm; R3= 30 ohm and R4= 20 ohm. Potential difference between b and d is
In the circuit shown, R1= 10 ohm; R2= 20 ohm; R3= 30 ohm and R4= 20 ohm. Potential difference between b and d is
1 Answer
Saurabh Koranglekar
Dear student
Vac = 15 V
R1+R2 = 30 ohms
R3+R4 = 50 ohm
Current at node b = 0.5 amp
Current at node d = 0.3 amp
Vb = Vac - Vr1 = 15 - (10/30)*15= 10
Vd = Vac - Vr2 = 15 - (30/50)*15 = 6v
Vbd = 4 v
Regards
Vac = 15 V
R1+R2 = 30 ohms
R3+R4 = 50 ohm
Current at node b = 0.5 amp
Current at node d = 0.3 amp
Vb = Vac - Vr1 = 15 - (10/30)*15= 10
Vd = Vac - Vr2 = 15 - (30/50)*15 = 6v
Vbd = 4 v
Regards
