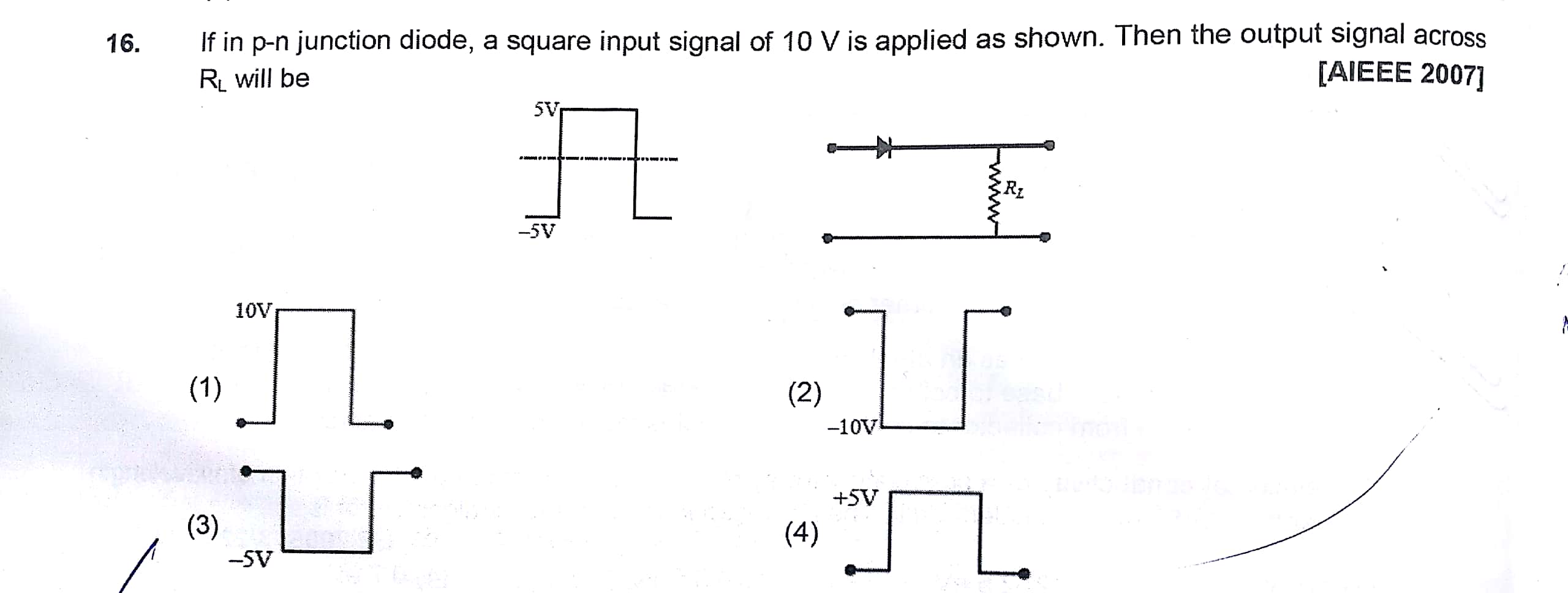

If in p-n junction diode, a square input signal of 10 V is applied as shown in the figure. Then the output signal across R will be

If in p-n junction diode, a square input signal of 10 V is applied as shown in the figure. Then the output signal across R will be

Question Image
Grade:

2 Answers

Arun
25750 Points
6 years ago
The junction diode is forward biased. The amplitude of the input signal is +5V. The output signal amplitude remains the same but as the diode does not conduct the negative voltage, the negative part of signal is removed.Hence, answer is (4).
Kushagra Madhukar
askIITians Faculty 628 Points
3 years ago
Dear student,
Please find the answer to your question.

The junction diode is forward biased. The amplitude of the input signal is +5V. The output signal amplitude remains the same but as the diode does not conduct the negative voltage, the negative part of signal is removed.Hence, answer is (4).

Thanks and regards,
Kushagra
