Grade 11General Physics

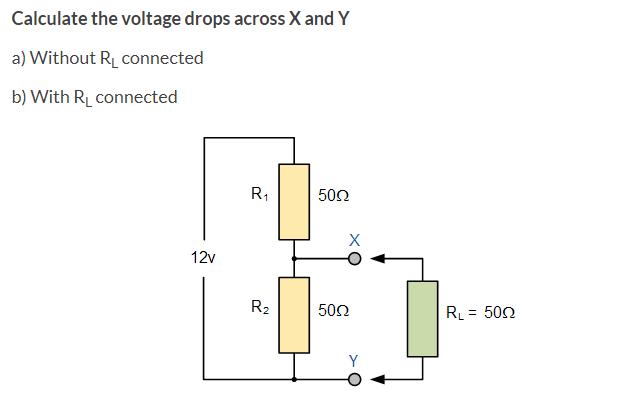

cal voltage acrosss cal voltage acrosss cal voltage acrosss
cal voltage acrosss cal voltage acrosss cal voltage acrosss
1 Answer
Vikas TU
Dear student
Apply voltage divider Rule to calculate voltage across x , y
Req b.n X and Y = 50*50 /100 = 25 ohm
V xy = 12*25 / 75
Vxy = 4V
hOpe this helps
Good luck
