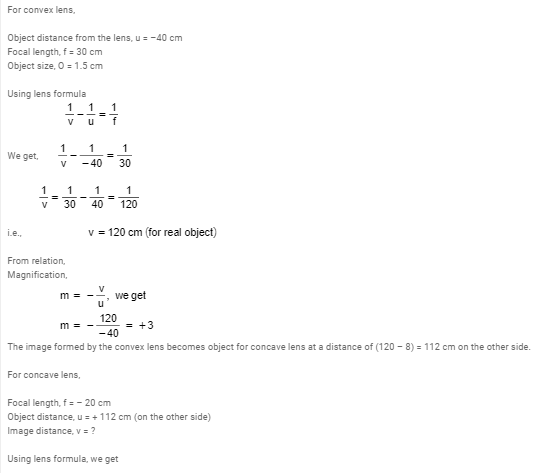

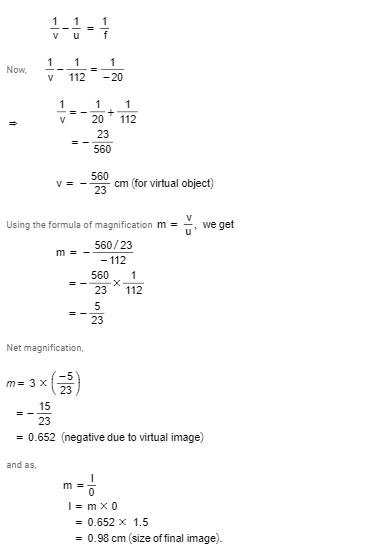

An object 1.5 cm in size is placed on the side of the convex lens in the arrangement . The distance between the object and the convex lens is 40cm. Determine the magnification produced by the two-lens system, and the size of the image.

An object 1.5 cm in size is placed on the side of the convex lens in the arrangement . The distance between the object and the convex lens is 40cm. Determine the magnification produced by the two-lens system, and the size of the image.

1 Answers

Think You Can Provide A Better Answer ?

Provide a better Answer & Earn Cool Goodies See our forum point policy
