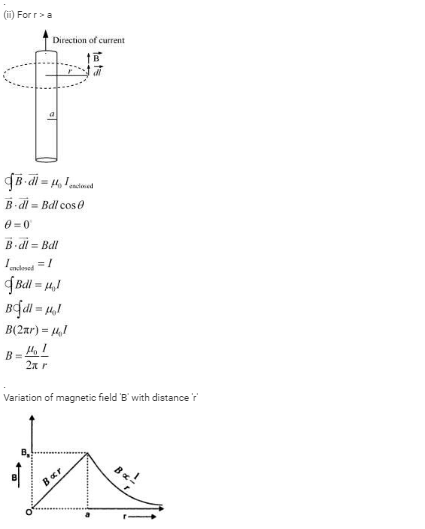

A straight thick long wire of uniform cross section of radius ‘a’ is carrying a steady current I. Use Ampere’s circuital law to obtain a relation showing the variation of the magnetic field (Br) inside and outside the wire with distance r, ( ) and ( ) of the field point from the centre of its cross section. Plot a graph showing the nature of this variation.

Rahul Kumar , 12 Years ago

Grade 12
