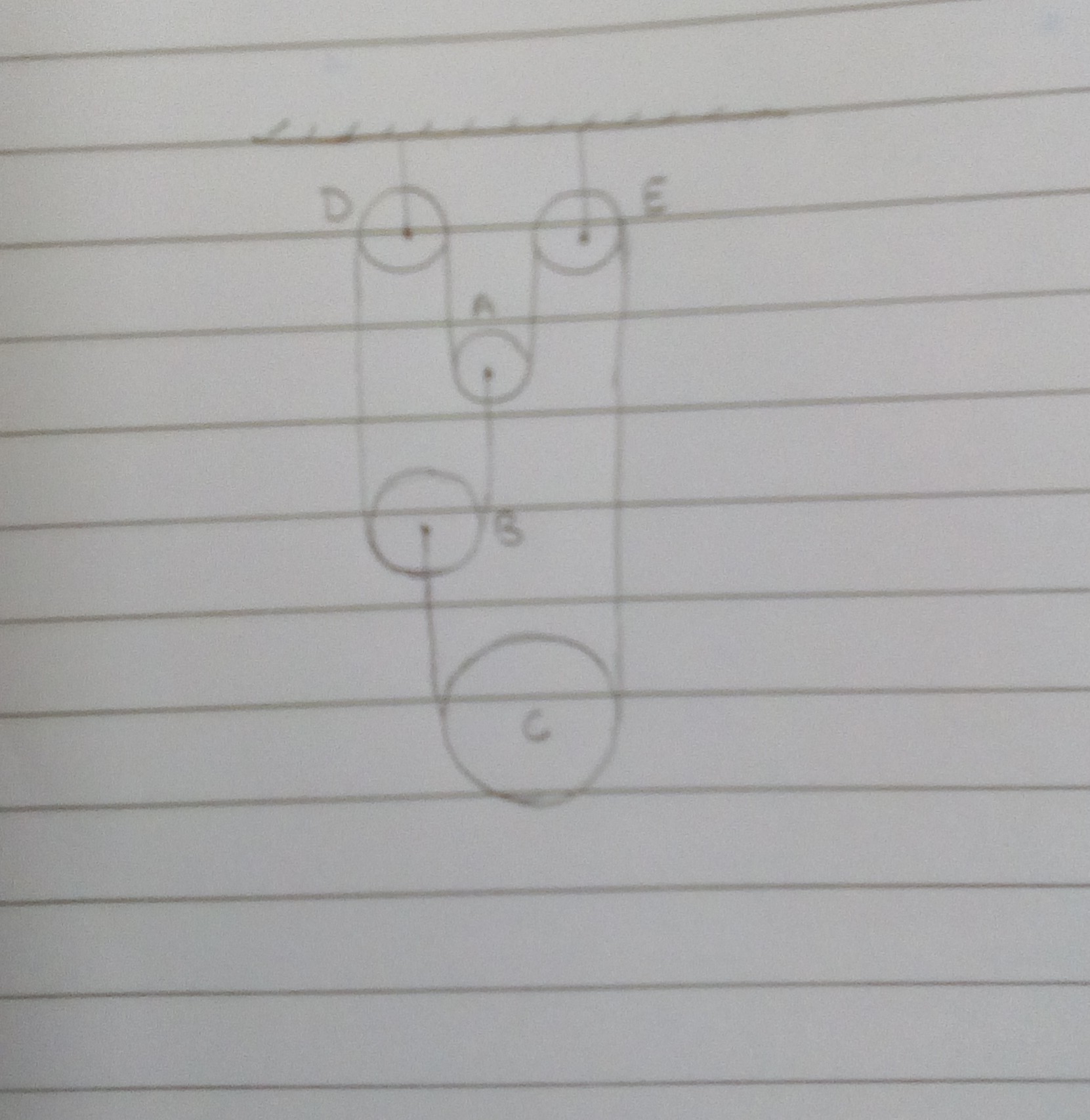

A pulley system is set up as in figure a movable Pulley A, B and C are each of one kg. Fixed pulley D and E are fixed. All pulley are smooth and spring is light and inextensible. find the acceleration of pulley C and tension in the string.

A pulley system is set up as in figure a movable Pulley A, B and C are each of one kg. Fixed pulley D and E are fixed. All pulley are smooth and spring is light and inextensible. find the acceleration of pulley C and tension in the string.

Question Image
Grade:11

1 Answers

Rituraj Tiwari
askIITians Faculty 1792 Points
3 years ago

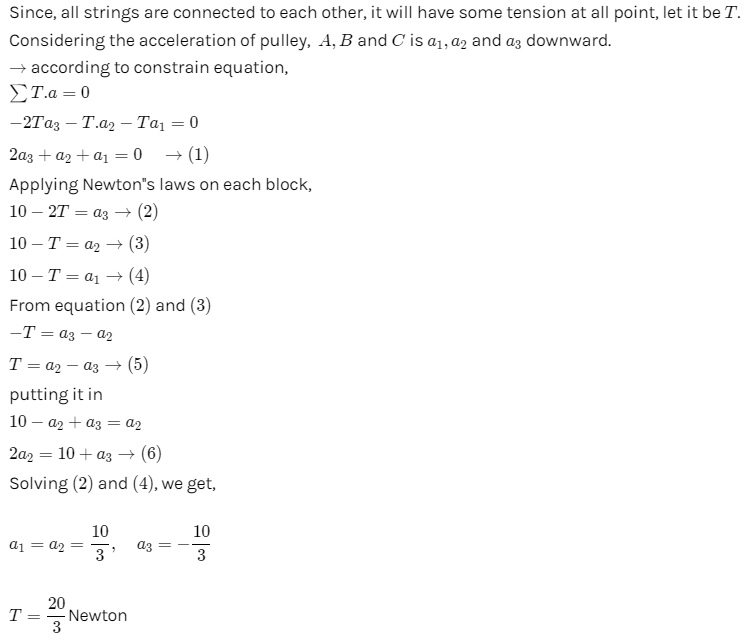

657-1419_Annotation 2020-07-28 095303.png
