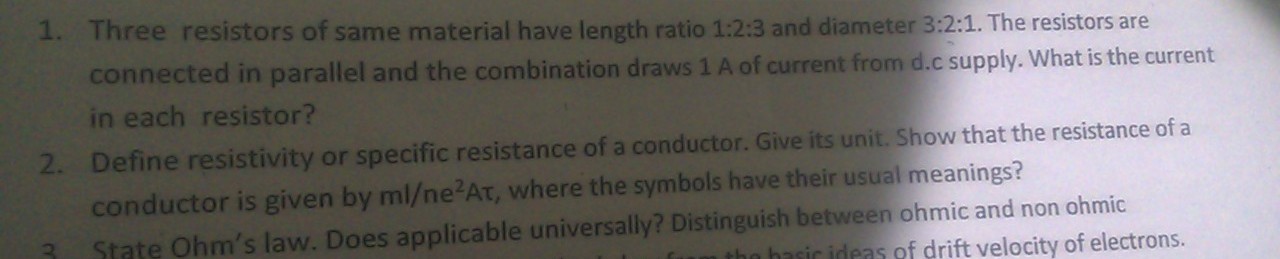

Grade 9Electric Current
will be very kind if reply for the answer myself yogesh from village tilpat in Faridabad
will be very kind if reply for the answer myself yogesh from village tilpat in Faridabad
1 Answer
Khimraj
Approved Tutor Answer8 Years agoresisance of wire
l/r2 l/d2
SO resistance ratio will be 1/32 : 2/22 : 3/12 = 2:9:54
since current in parallel combination is inversely proportional to resistance
SO current in three wire will be in ratio
(1/2):(1/9):(1/54)
and current will be
27/34, 27/153, 17/918
Hope it clears.
