Grade 12th passElectric Current

A dipole consist of two particles one with charge +1microcoloumb and mass 1 kg and other quick charge - 1 microcoulomb and mass 2 kg separated by a distance of 3 m for small oscillation about its equilibrium position the angular frequency when placed in a uniform electric field of 20kv/m

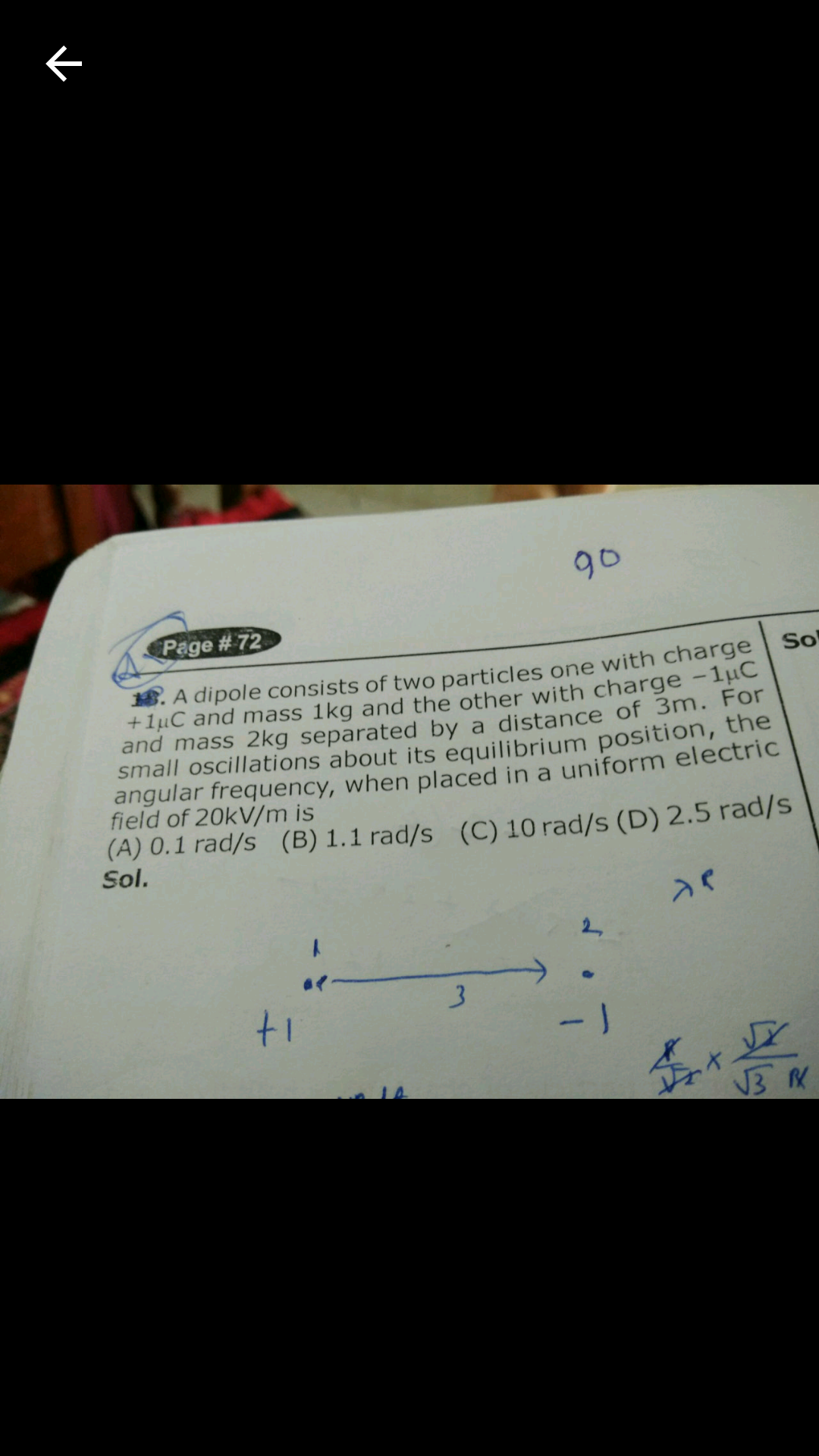

Question image for A dipole consist of two particles one with charge

Akhil

9 Years agoGrade 12th pass

2 Answers

Vikas TU

8 Years ago

Dear Student,

Torque=Iα

Torque=-pEsin?

Iα=-pEsin?

Contrasting this condition and the SHM condition

mα=-kx

rakish recurrence = √(k/m)

k=pE

=>k= 6x104
Angular frequency of the 2kg mass charge = √(6X?10?^4/2) = 100√3
Angular frequency of the 1kg mass charge = √(6X?10?^4/1) = 100√6

Cheers!!

Regards,

Vikas (B. Tech. 4^th year
Thapar University)

Harshita

4 Years ago

A dipole is released in uniform electric field at an angle of 37°. Find out the angular frequency when it crosses mean position.
