Electric Current

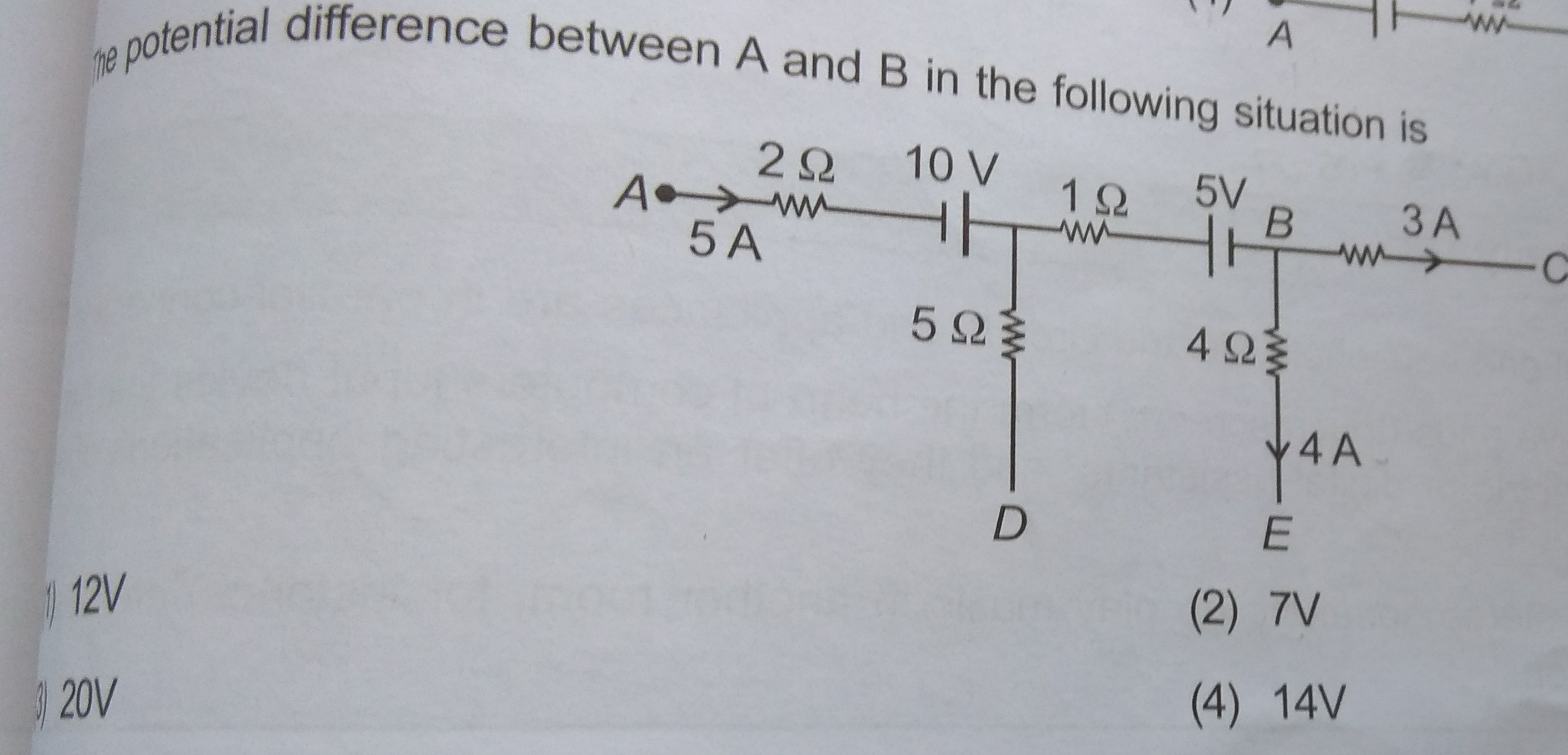

The potential difference between Aand B in the following situation is
1 Answer
Khimraj
Approved Tutor Answer8 Years agoIn coming current at point B = 4 +3 = 7A.
Current from D branch = &-5 = 2A.
So potential differnce between A and B = 2*5 – 10 +1*7 +5 = 12V.
