The internal resistanve of cells shoen in the fog. are negligible.Determine(a)tje current flowing through the 10 ohm resistor.
(b)the potential difference between the point A and B.

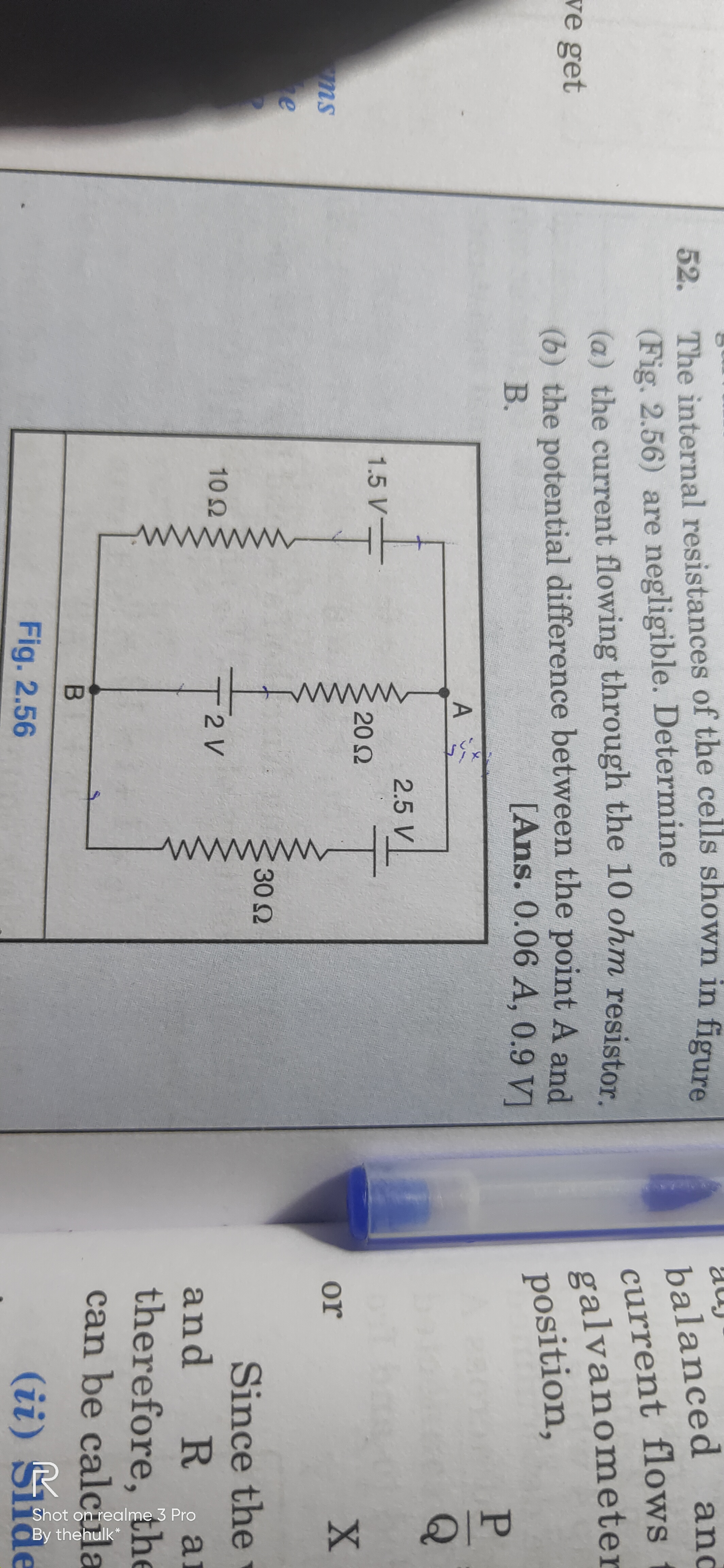

Question image for The internal resistanve of cells shoen in the fog

Devi

7 Years agoGrade 12

1 Answer

Vikas TU

7 Years ago

Hiii Devi

Let us assume the potential at poit A is V volt, and at point B the potential is 0v.

Apply nodal to the network and solve for V

You will find V as 2.09 volt.

so, the current flow through 10 ohm resistor is 1.29 amp. (Upward )

and potential difference between A and B is 2.09 volt.

The fig. Shows a network of resistance in which the point A is earthed

electric current

0 Answer Available

Last Activity: 4 Years ago

When a p.d of 2v is applied across a resistor, 10j of energy are covered. What charge flows through the resistor?

electric current

0 Answer Available

Last Activity: 4 Years ago

Please provide it's solution. In video form
Find the equivalent resistance of the given figure

electric current

1 Answer Available

Last Activity: 4 Years ago

The resistivity of material is 10 ohm m at 30 C when the temperature drops to 28 then the resistivity drops by 2. The temperature coefficient of resistivity of material is

electric current

1 Answer Available

Last Activity: 4 Years ago

Three cells of 2.0v each and internal resistance of 1.0 each are connected in series and in parallel calculate the new emf and new internal resistance in each connection

electric current

1 Answer Available

Last Activity: 4 Years ago
