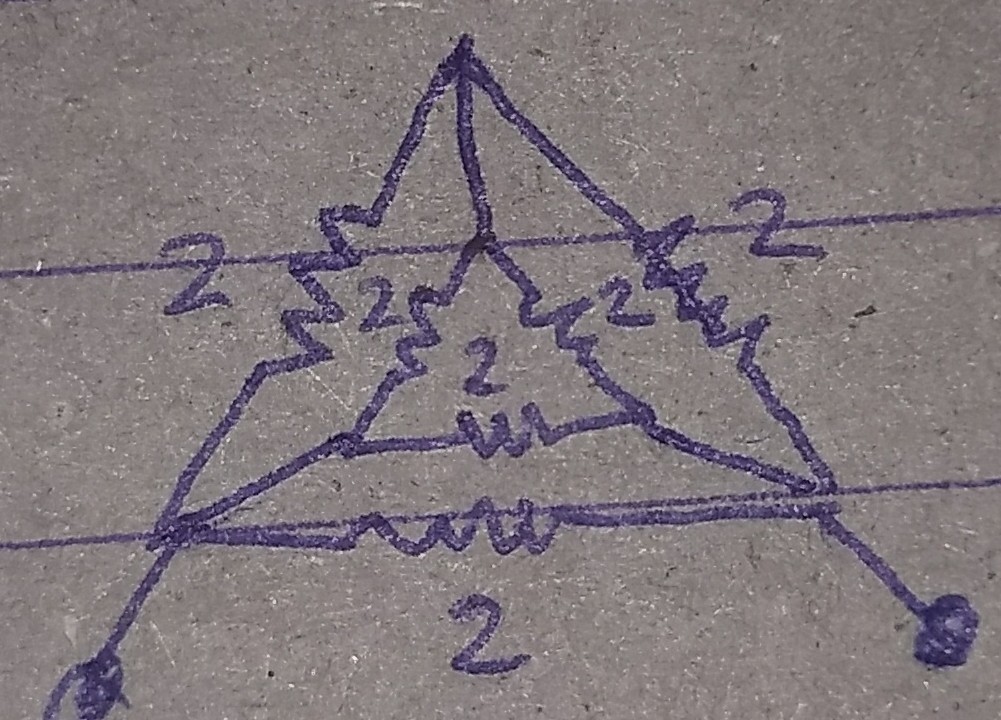

Tell the net resistance of the given network of the resistors where each resistor is of 2ohms.......Plz ans soon and fast

Tell the net resistance of the given network of the resistors where each resistor is of 2ohms.......Plz ans soon and fast

Question Image
Grade:10

1 Answers

Khimraj
3007 Points
5 years ago
correspoding parallel side of both triangle are in parallel connection.
so equivalent is triangle with each side of 1 ohm resistance
then equivelent resistance is 2/3 ohm.
Hope it clears. If you like answer then please approve it.
