Grade 12th passElectric Current

sir pleas solve this
this is the question from book d c pndey arihant publication
i solved and ans according to me is 5/7

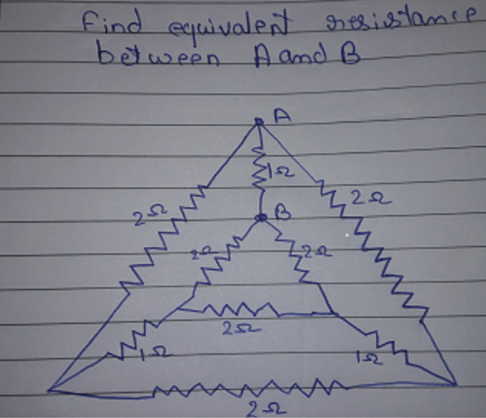

Question image for sir pleas solve this this is the question from bo
Profile image of Amit Shrivastav
9 Years agoGrade 12th pass
Answers icon

1 Answer

Profile image of Amit Shrivastav
9 Years ago
YOU ARE GOING CORRECT APPLY WEAT STONE BRIDGE ON CENTER RESISTANCE AND RE MOVE IT NOW YOU WILL HAVE 3OME RESISTANCE . THEN OPEN THE CIRCUIT BETWEEN A AND B AND HENCE YOU WILL GET ANS AS 5\7
