Grade 12th passElectric Current

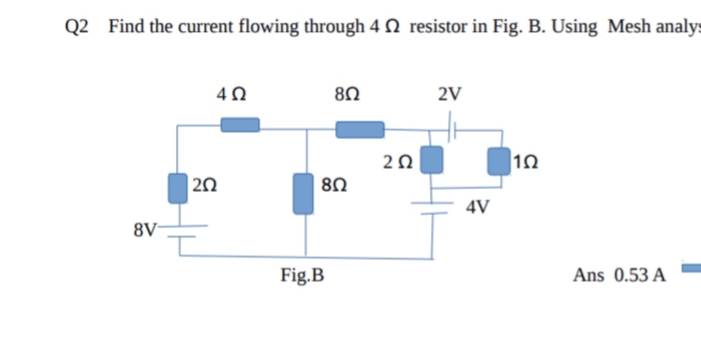

Pls solve the question by kirchhoff's voltage law...thanks.
Pls solve the question by kirchhoff's voltage law...thanks.
1 Answer
Vikas TU
Dear student
In this question you can see there are loops forming .
You have to apply difficult nodal analysis , (Difficulty in considering ground)
Mesh analysis will be easier method .
You just need to consider currents in two loops.
Hope this will help
Good Luck
