Grade 12Electric Current

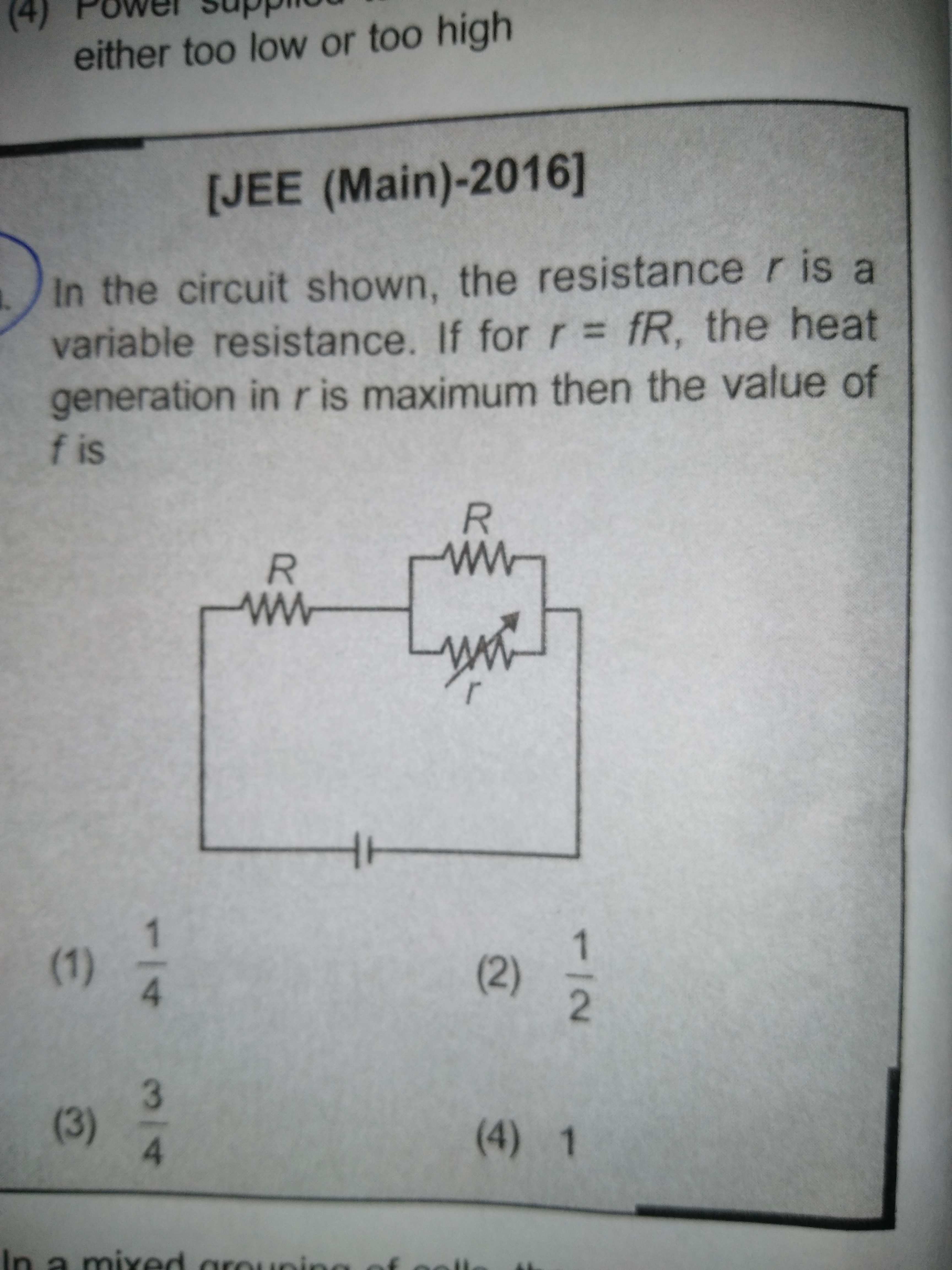

Please calculate the value of the f for max heat generation
Please calculate the value of the f for max heat generation
1 Answer
Vikas TU
Hiii
Heat generated in the r is maximum when the load resistance (which is r here will be equal to Rth )
Rth – stands for thevenin resistance .
Short circuit the voltage source and find equivelent resistance across r load.
now R and R will come in parallel ,
So Rth = r = R/2
so, f will be ½
Hope this helps.
Cheers.
