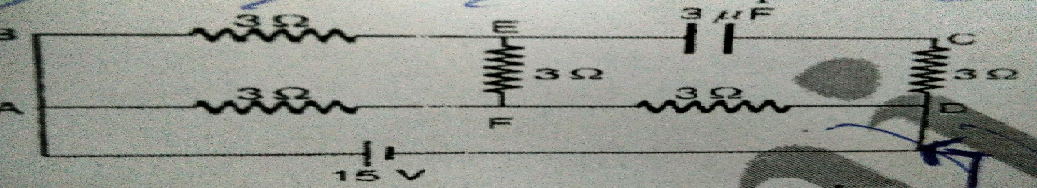

in the network given in the figure, determine potential difference across the capacitor?
in the network given in the figure, determine potential difference across the capacitor?
Rishabh , 9 Years ago
Grade 12
Electric Current> in the network given in the figure, deter...
2 Answers
Abhishek Singh
Once the steady state is reached current throgh branch ECD is zero, so you can just remove it out and can sove the circuit.
Find the p.d across ED and this will be the p.d across EC(or capacitor) as p.d across the CD resistance will be zero
P.d thru ECD = pd across EFD
= 12V
so 12 v is p.d across capacitor
Approved Last Activity: 9 Years ago
Rishabh
Can u please please solve it completely. i have problem In finding net current and resistance... it's a huge request to u... please help
