Grade 12Electric Current

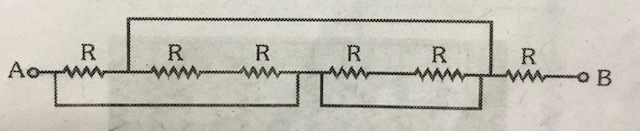

In the given circuit, the equivalent resistance between A and B is-
  1. R
  2. 2R/5
  3. R/3
  4. 2R

Question image for In the given circuit, the equivalent resistance b
Profile image of Niyathi Sudheer
8 Years agoGrade 12
Answers icon

2 Answers

Profile image of Arun
8 Years ago
Dear student

if we open this circuit

then

R || (R and R in series) || (R and R in series) || R

hence equivalent resistance

 = R || 2R || 2R ||R

1 / Rnet = 1 / R + 1/2R + 1/2R + 1/R

1 / Rnet = 2 + 1 + 1 +2 / 2R

1/ Rnet = 6 / 2R

Rnet  = R/3

Regards
Arun
Profile image of Khimraj
8 Years ago
Initial five resistance are short circuited so they don’t work.
So equivalent resistance between A and B is R.
