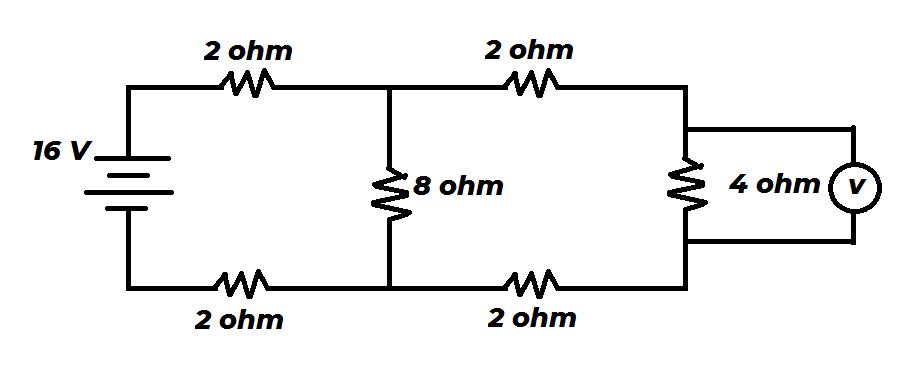

In the Circuit diagram given below, find the Voltmeter reading across a 4 ohm resistor.

In the Circuit diagram given below, find the Voltmeter reading across a 4 ohm resistor.

Question Image
Grade:12

1 Answers

Khimraj
3007 Points
2 years ago
voltage across 8 ohm register =  16/2 = 8V
so voltage across 4 ohm register = 8/2 = 4V
then reading of voltmeter = 4V
Hope it clears...........................
