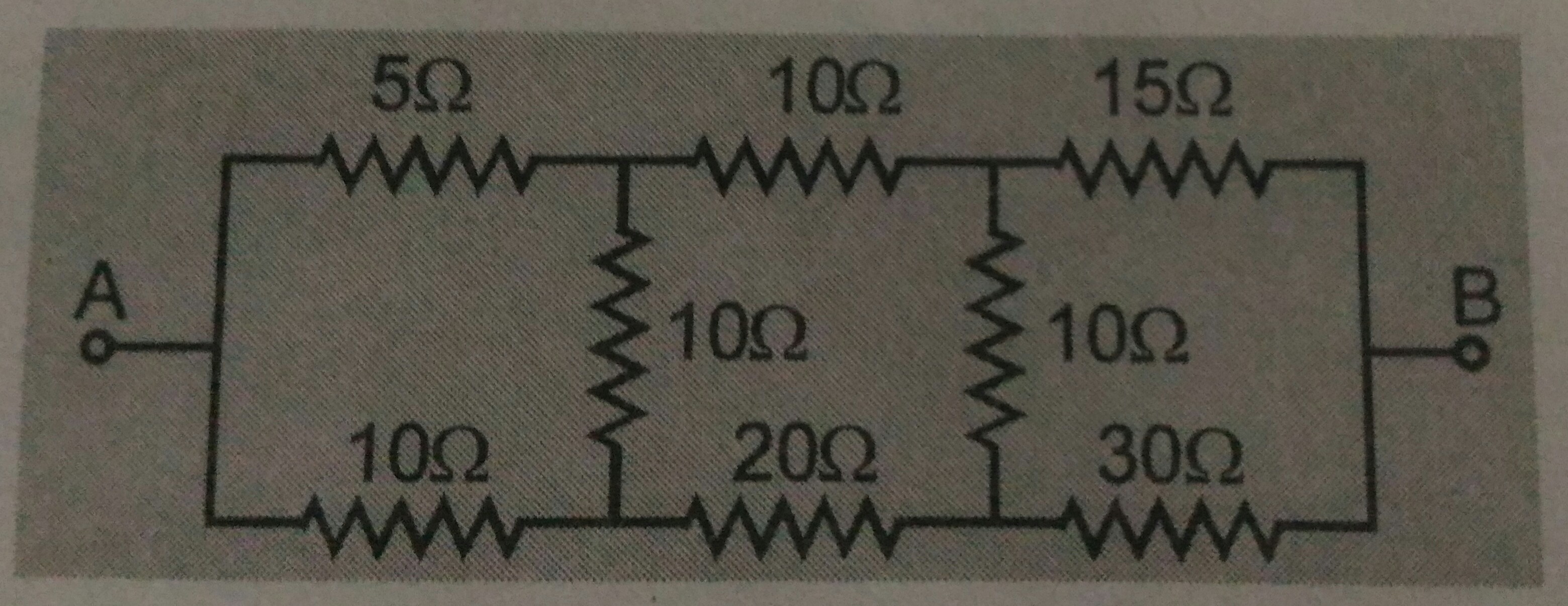

In the arrangement of resistances shown below, the effective resistance between point A and B is

Question image for In the arrangement of resistances shown below, th
Profile image of Manshikha muskan
7 Years agoGrade 12th pass
Answers icon

1 Answer

Profile image of Samim Aftab
7 Years ago
use star delta method to convert the first resistance that is 5 ohm 3 ohm and 10 ohm the triangular and then will get a normal series and parallel connection and then we can easily calculate the resistance
