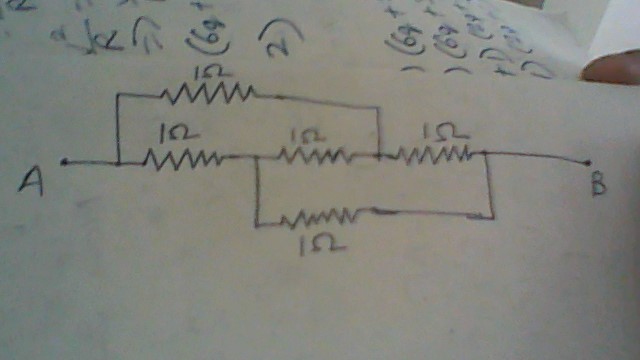

How do I calculate the equivalent resistance between the points A and B?
5 years ago

Answers : (2)

noogler
489 Points

Eq Resistance=1 Ohm
This arrangement is similar to wheatstone bridge
as that will be in formP/Q=R/S no current will flow through bridge , now u can easily find eq resistance
APPROVE IF USEFULL
5 years ago
IVIN ZACHARIA THOMAS
38 Points

In this figure the resistances are short circuted the 1’st resistance(2’nd line) comes in series with the resistance on the 1’st line and becomes 2ohm,so does the 3’rd resistance(2’nd line) comes in series with the resistance on the third line and becomes 2ohm.
Thus a 1ohm,and two 2ohm resistances come parallel which makes the  equialent restance=1/2ohm
5 years ago
