Grade 12th passElectric Current

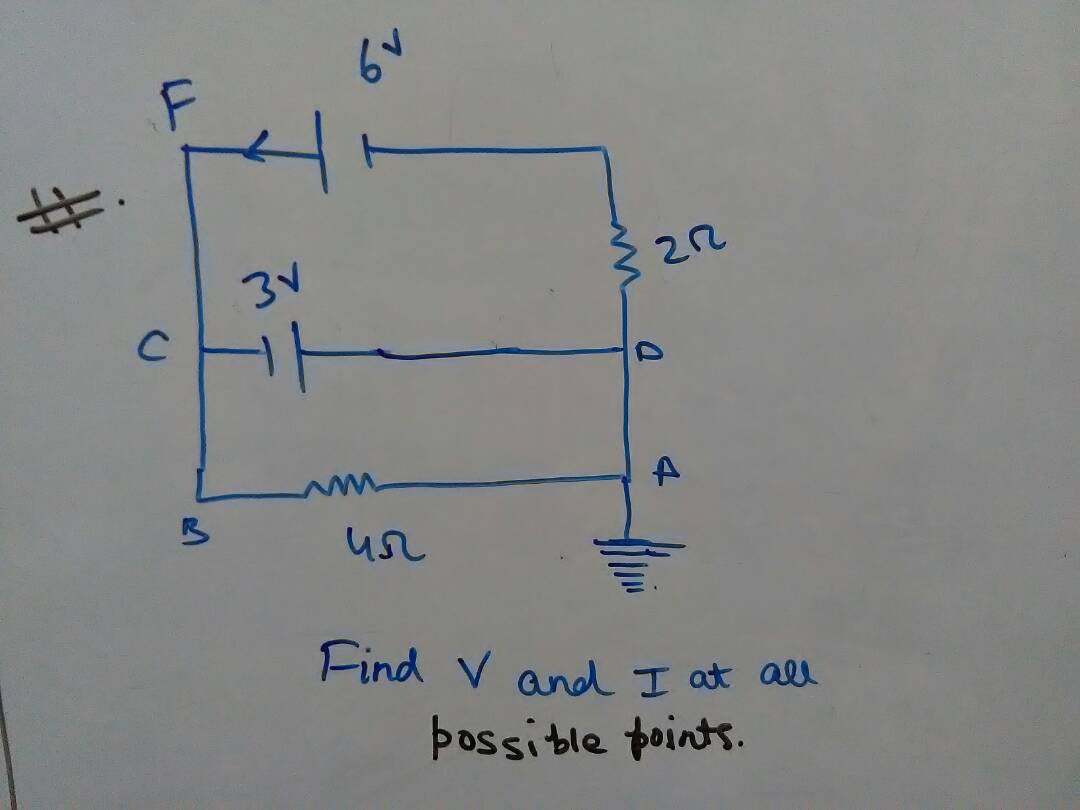

find value of POTENTIAL (V) AND CURENT(I) at all possible points … plz answer it as fast as possible

Question image for find value of POTENTIAL (V) AND CURENT(I) at all
Profile image of harsh chauhan
9 Years agoGrade 12th pass
Answers icon

1 Answer

Profile image of Vikas TU
9 Years ago
As in the second loop
On the branch of 3 v the current flows i2 goes to the divided branches. Then on the upper brances current –i1 is flows through it
Because it is opposite to the voltage symbol.
Then on first loop
-6 = -2i1
=> i1 =3A
Through the 4 ohm
The current (-i1+i2) is flowing
3 = 4(-i1+i2)
¾ = -3+i2
I2 =15/4 A
Direction is anticlockwise
