Grade: 12th pass

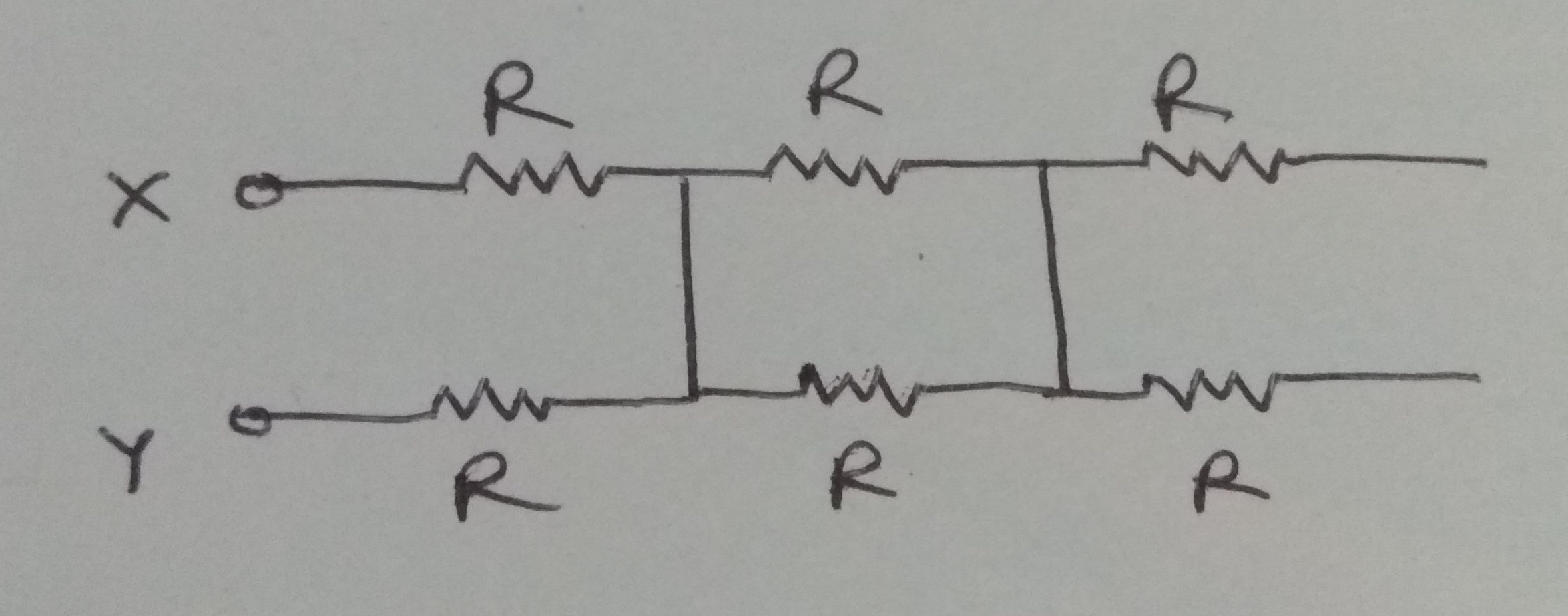

Find out equivalent resistance between  x and y.please explain in detail.
one year ago

Answers : (3)

Saurabh Koranglekar
askIITians Faculty
3157 Points
							2R

as there is a short circuit after resistance at x then next resistance is in series

therefore R+R = 2R
one year ago
Piyush Kumar Maurya
65 Points

Since you havent asked for the resistance till inifinity, the  last two resistance at the farthest end of X and Y will get cancelled as no current will pass through them So the circuit now gets simple.The three resistance are in series so Equivalent resistance R'= R+R+R = 3R
Now this R' is in series with the other two resistances connected with X and Y. So Equivalent resistance Req = R' + R + R = 3R+R+R = 4R
one year ago
Piyush Kumar Maurya
65 Points

Sorry for the inconvenience caused due to my answer above. Actually i misinterpreted the question. The equivalent resistance will be 2R.
The last two resistance at the farthest end from X and Y will get cancelled as no current will flow throuth them. The next two resistances after that are short circuited . So the equivalent resistance will be 2R
one year ago
