Electric Current

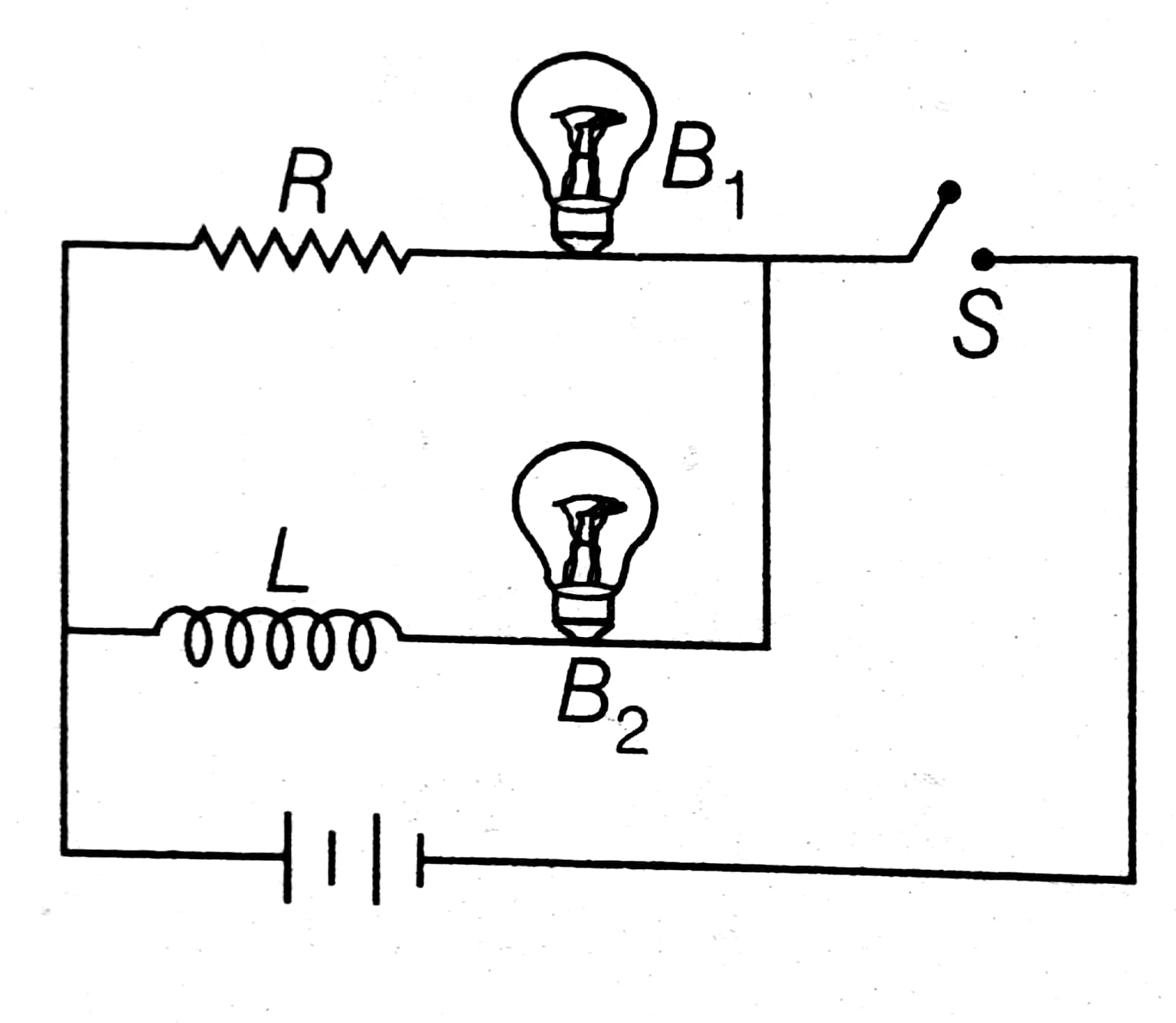

Figure represents two bulbs B1 and B2, resistor R and and inductor L. When the switch S is turned off, then (PLEASE EXPLAIN) ANS IS Ca) both B1 and B2 die out promptly b) both B1 and B2 die out With some delayc) B1 dies out promptly but B2 With some delay d) B2 dies out promptly but B1 with some delay

Question image for Figure represents two bulbs B1 and B2, resistor R

Sarthak Khandelwal

8 Years agoGrade

1 Answer

Arun

Approved Tutor Answer8 Years ago

Dear Sarthak

B1 dies out promptly but B2 with some delay because of presence of inductance in its circuit.

Regards

Arun (askIITians forum expert)
