Flag Electric Current> Effective resistance current through each...
question mark

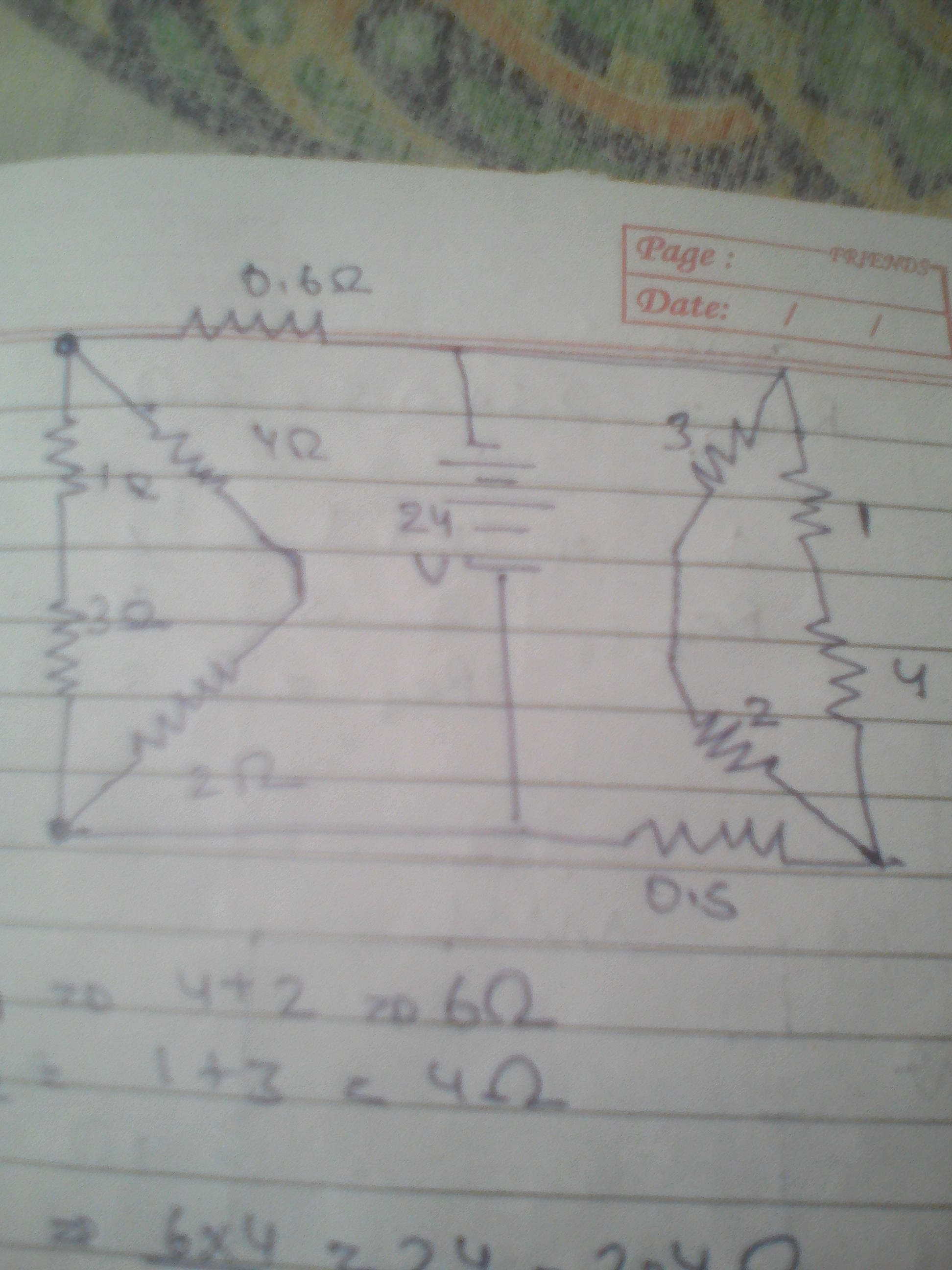

Effective resistance current through each conductor.

Ankira , 7 Years ago
Grade 12
anser 1 Answers
Sandesh
You did it correct in the rough shown.The answer is 1.5 ohm itself.
Left part we get 3 ohm which is parellel to the rigt side part which is also 3 ohm.
Therefore togetherly we get  3/2 ohm.
Last Activity: 7 Years ago
