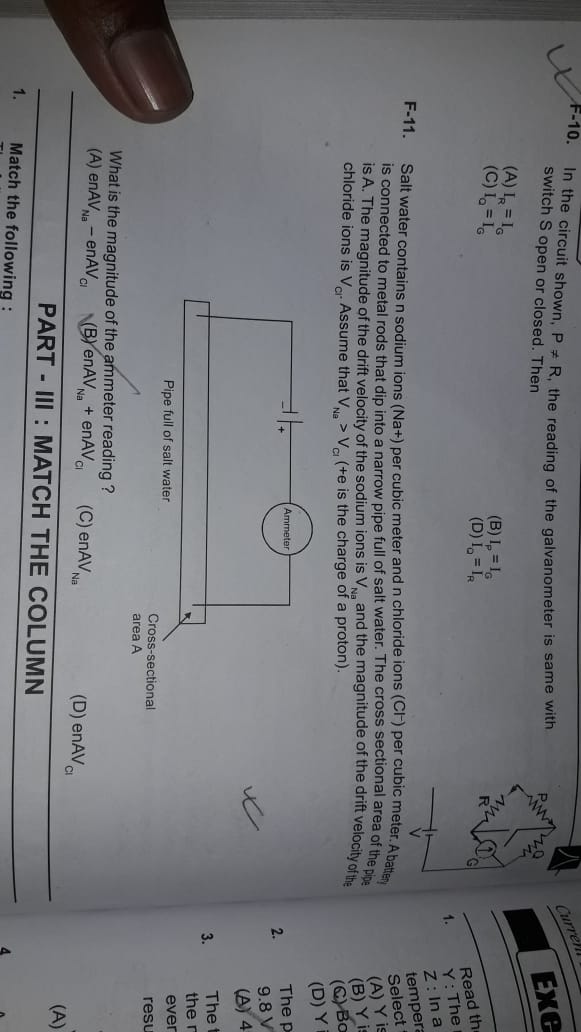

Can anyone explain the answer of this ques??the option is b

Question image for Can anyone explain the answer of this ques??the o

Rahul kumar Prasad

8 Years agoGrade 12th pass

1 Answer

Eshan

8 Years ago

Dear studnent,

Current due to movement of sodium ions= $I_{Na}=neAv_{Na}$
Current due to movement of cholride ions= $I_{Cl}=neAv_{Cl}$
The two currents will be in the same direction since ions with opposite charges will move in opposite directions.

Hence total current flowing through the salt water= $neA(v_{Na}+v_{Cl})$
