Grade 12th passElectric Current

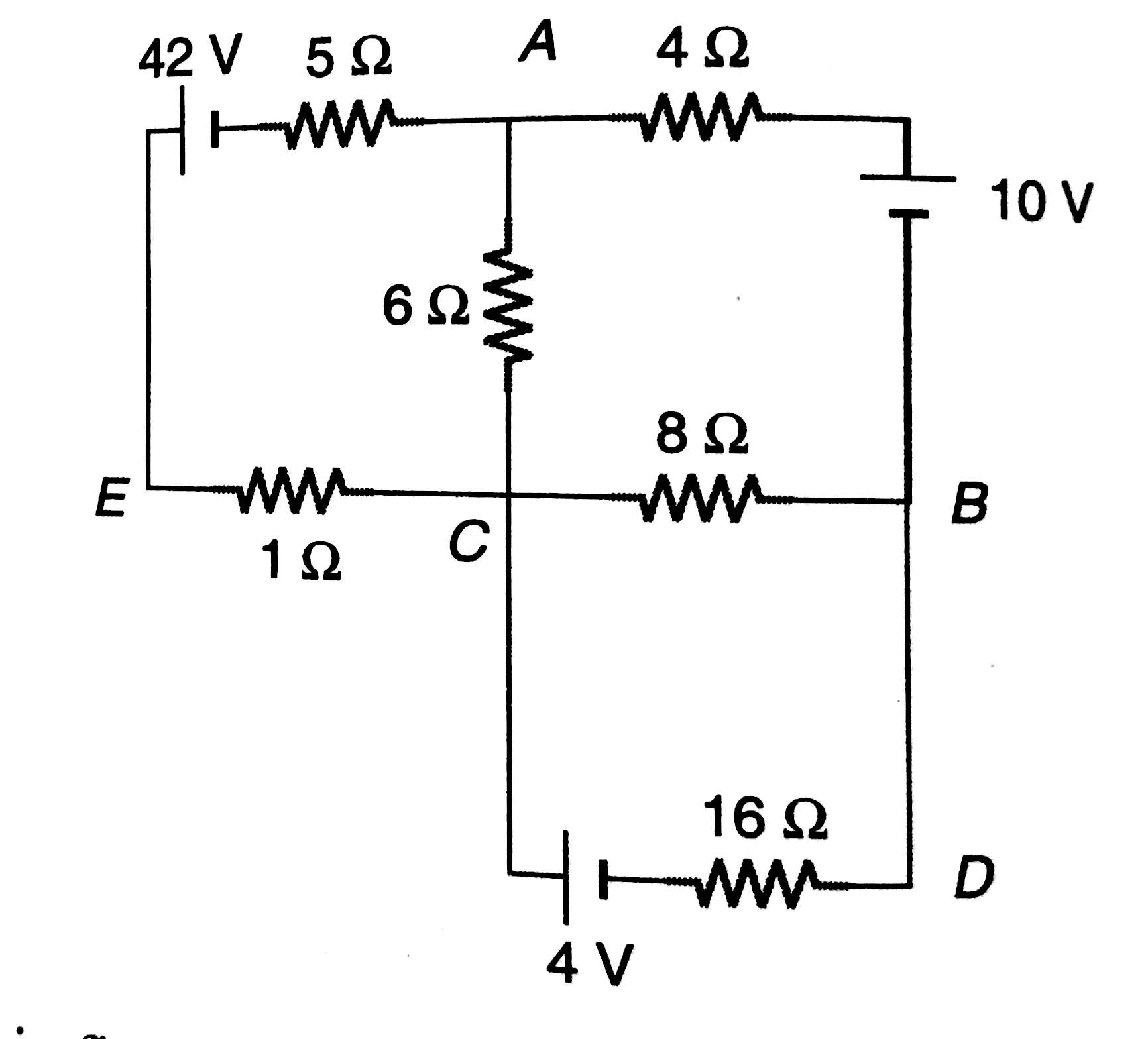

Can any one help me out this problem with NODAL ANALYSIS METHOD????
Can any one help me out this problem with NODAL ANALYSIS METHOD????
1 Answer
Saurabh Koranglekar
Dear student
What needs to be obtained?
In general, consider Vc at point C also Vb at point B, then apply KCL, it will help in simplification
What needs to be obtained?
In general, consider Vc at point C also Vb at point B, then apply KCL, it will help in simplification
