Grade 12th passElectric Current

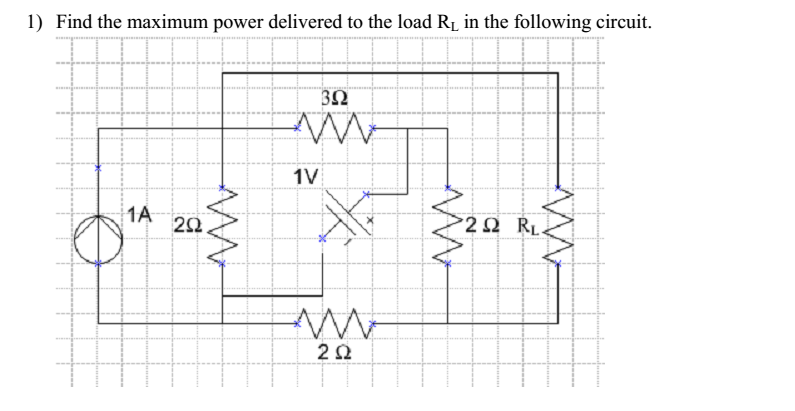

Answer the question in image?
Answer the question in image?
1 Answer
Vijay Mukati
Hi, Try to convert this circuit into its thevenin’s equivalent. Then the maxmum power delived to the load can be found out by putting Rth = RL.
