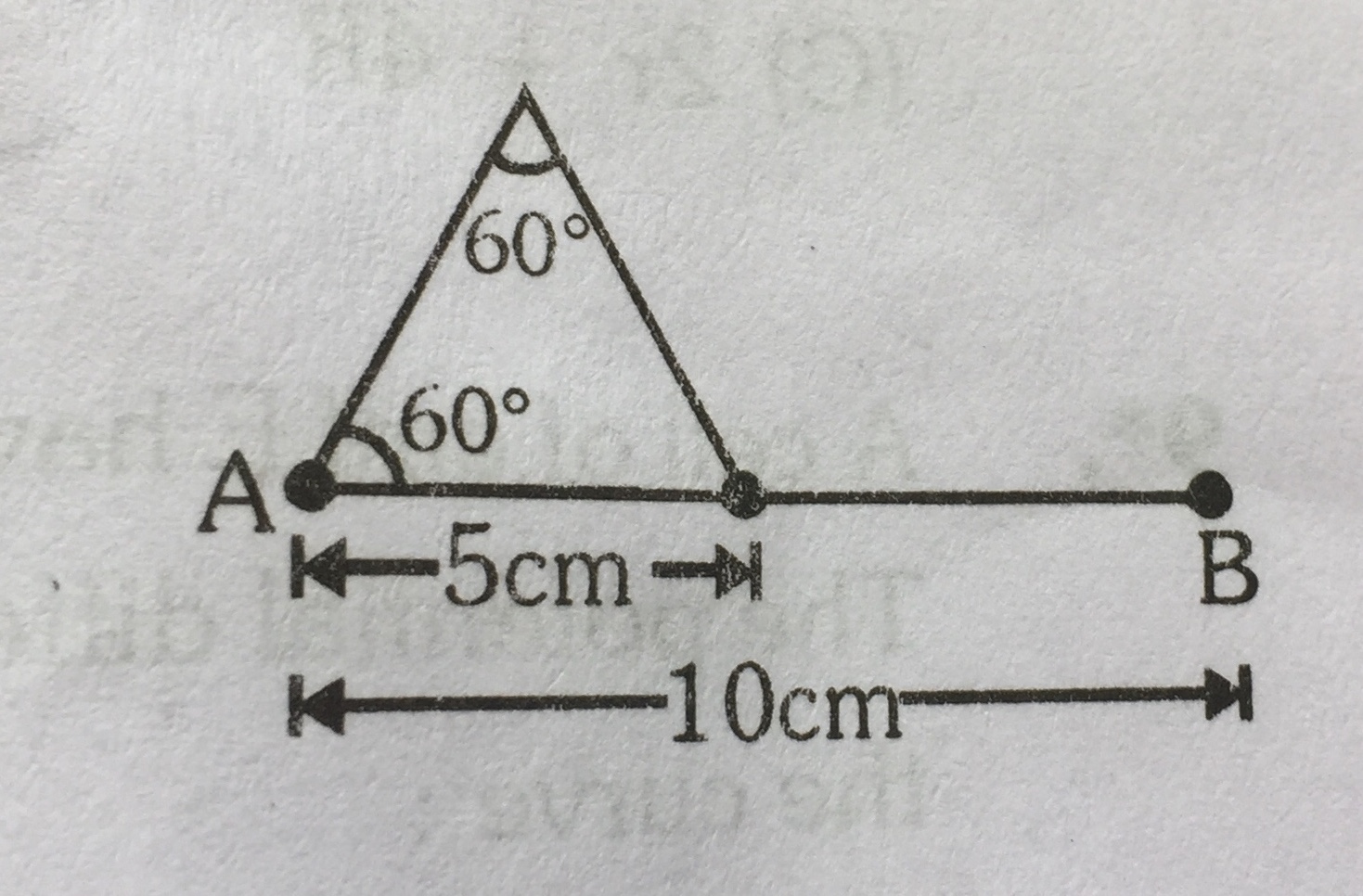

A uniform wire has resistance of 24 ohm Is bent in the following shape.the effective resistance between A and B is

A uniform wire has resistance of 24 ohm Is bent in the following shape.the effective resistance between A and B is

Question Image
Grade:12

1 Answers

Khimraj
3007 Points
5 years ago
each side have resistance = 24/4 = 6ohm
resistance of traingle = 12 in parallel with 6 = 12*6/18 = 4 ohm
net resistance = 4 in series with 6 = 4+6 = 19 ohm
Hope it clears.
If you like answer then please approve it.
