In the given circuit, with steady current, the potential drop across the capacitor must be.

  1. In the given circuit, with steady current, the potential drop across the capacitor must be.

Question Image
Grade:12

3 Answers

Aziz Alam IIT Roorkee
askIITians Faculty 232 Points
9 years ago

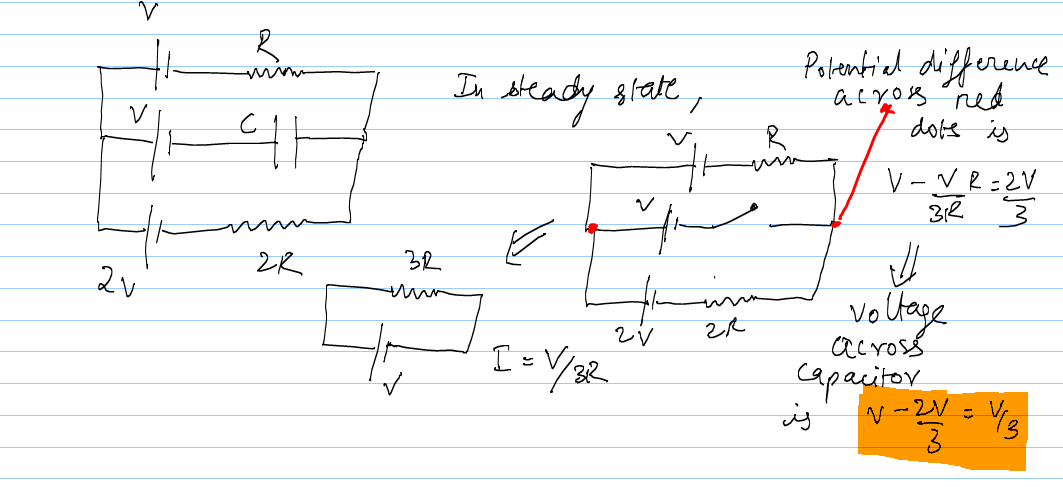

PLease find the solution to the problem.
229-428_Electric Circuit.PNG
Anu
11 Points
6 years ago
Apply Kirchoff law Take loop afdca2V-2RI-RI-V=0Now see .. V across AF =V across BE=V across CDSo. V(be)...RI+V= 2V-2RI (just reaarange the kirchoiff equation.)V(be)= 2v- 2R * v/3R = 4v/3Now Vbe= v acriss C + V So V(C)= v(be)-v= 4v/3-v= V/ 3... This is answer V/3
Rishi Sharma
askIITians Faculty 646 Points
3 years ago
Dear Student,
Please find below in the attached inage the solution to your problem.

Thanks and Regards
645-438_WhatsApp Image 2020-07-10 at 9.47.30 PM.jpeg
